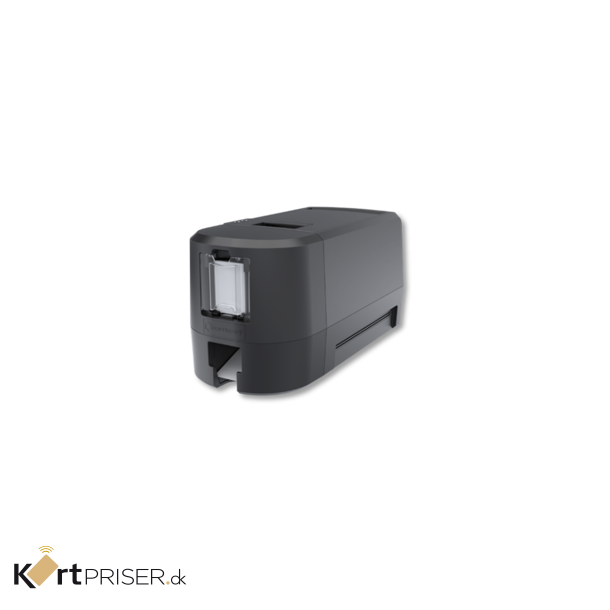

Entrust Sigma DsE kortprinter

NU ER DEN HER - helt ny, lille smart og prisgunstig plastkort printer fra Entrust (tidl. DataCard)

USB-interface og div. Windows-drivere

Få på lager......

BEMÆRK: Kan fås som Duplex (2-sidet printer) og så med indbygget netkort (Ethernet)

Spørg gerne for pris og leveringstid.

The next generation single-sided printer

As the world leader and innovator in identity issuance, we’re reimagining the ID solutions industry by providing an issuance system that’s specifically designed for today’s environments, which gives you the ability to easily issue the most secure identities in the world.

Types of cards

• Government-issued IDs & Cards
• Employee ID Cards
• Student, Teacher, Faculty, & Admin ID Cards
• Membership Cards
• Guest Cards
• Food Safe Labeling
• Passenger Cards
• Visitor ID Cards
• Event ID Cards
• Access Control Cards

Industries

• Regional & Local Government
• Enterprise
• Education
• Healthcare
• Retail
• Hospitality
• Food Retail
• Transportation

Standard Features and Supplies

Print Technology

• Dye-sublimation / resin thermal transfer

Print Capabilities

• Single or dual-sided

Print Resolution

• 300 dots per inch (dpi) (300 X 600, 300 X 1200)

Monochrome printing

• Up to 880 single-sided cards per hour

Print Speed

• Single-sided color ribbon – up to 225 cards per hour (cph)
• Double-sided color ribbon – up to 140 cards per hour (cph)

Card Capacity

• Input hopper - up to 125 cards
• Output hopper - up to 25 cards (up to 100 optional)
• Reject hopper - up to 10 cards

Card Sizes

• Card input size:
• Thickness - 0.010 inches to 0.040 inches
  • (0.25mm - 1.016mm)
• Dimension - ID-1, CR-79, CR-80

Operating Environment

• Temperature: 60°F to 95°F (15°C to 35°C)
• Humidity: 20-80 % RH - non condensing

Physical Dimensions

• L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm

Weight

• 12.1 lbs (5.49 kg); with options will vary

Connectivity

• USB & Ethernet

Warranties

• 36 Months

Web browser support for Instant ID as a Service

• Chrome - Preferred
• Edge/Internet Explorer
• Safari

Operating system support for printer driver

• Windows 11
• Windows 10 versions, 32- and 64-bit
• Windows 8.1, 32- or 64-bit
• Windows Server 2019
• Windows Server 2016
• Windows Server 2012, R2, 64-bit

Optional Features and Supplies

Magnetic Stripe Encoding

• ISO 7811 three-track support (high- and low- coercivity)
• JIS Type II Single-track option

WiFi

• Wi-Fi types: 802.11g/n
• Authentication modes: None, WPA2 Personal
• Dual-band 2.4GHz & 5GHz

Smart Card Encoding

• Single Wire or Loosely coupled:
• Contact smart card encoding: ISO 7816 T=0 (T=1),
• Class A 5V (3V and 1.8V)
• Contactless smart card encoding:
• ISO 14443 – A (B), ISO 15693, MiFare Series, DESFire Series,
• HID IClass Series, HID Prox (125 KHZ)

Color Ribbons

• Prefilled print ribbon cassettes:
  • YMCKT (500)
  • YMCKT-KT (350)
  • KTT (750)
  • ST-KT (500)
  • GT-KT (500)
• Refill print ribbon kits:
  • YMCKT (250/500)
  • ymcKT (650)
  • YMCKT-KT (350)
  • ymcKT-KT (435)
  • KT (1000)
  • KTT (750)
  • YMCKF-KT (300)
  • YMCKL-KT (300)
